Plastic Insulted Low-temp. Fixture Power Cable
|
Type： |
YJVR、VVR |
|
Main Specification： |
Number of Cores： 1Cores Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、25mm²、 35mm²、50mm²、70mm²、95mm²、120mm²、150mm²、185mm²、 240mm²、300mm²、400mm²、500mm² Number of Cores： 2Cores Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、25mm²、 35mm²、50mm²、70mm²、95mm²、 Number of Cores： 3Cores Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、25mm²、 35mm²、50mm²、70mm²、95mm²、120mm²、150mm²、185mm² Number of Cores： 4Cores Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、25mm²、 35mm²、50mm²、70mm²、95mm²、120mm²、150mm² Number of Cores： 5Cores Cross-section：1.5mm²、2.5mm²、4mm²、6mm²、10mm²、16mm²、25mm²、 35mm²、50mm²、70mm² |
|
Rated Voltage： |
0.6kV/1kV |
|
Standard： |
Standard: GB/T 12706 Rated Voltage 1kV(Um=1.2kV) to 35kV(Um=40.5kV) Extruded Insulation Power Cable and Accessories |
|
Products Introduction： |
Apply to power system and control system with AC rated voltage up to and including 600/1000V，the wind power generation and various portable electrical equipment which require the performance of flexibility, bending, bearing great external mechanical forces, weather proof, anti-UV, anti-Ozone, anti-oil, cold-resistance and flame retardant. The cable should have the characteristics of flexible and small bending radius. |
|
Cable Structure Drawing：

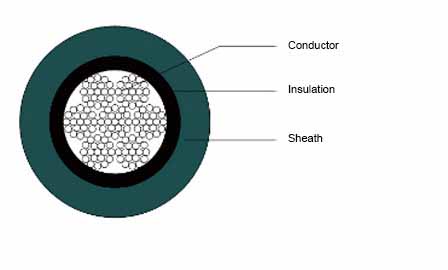

1Cores

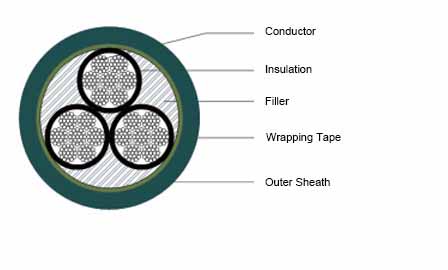

3Cores

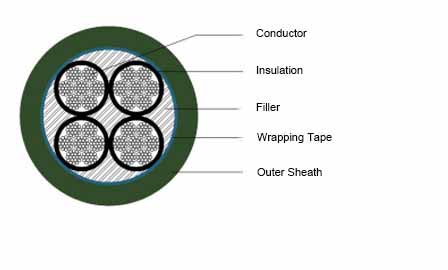

4Cores

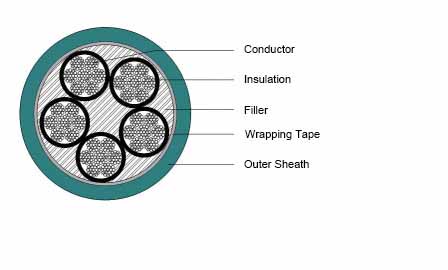

5Cores |
|
