Type：

KVV22(32)、KYJV22(32)、KVVP(P2)-22、KYJVP(P2)-22

Main Specification：

KVV22(32)、KYJV22(32)：7～61(19～61)  Cores、0.75～1.0mm²；4～61(7～61)Cores、1.5～2.5mm²；4～14  Cores、4～6mm²；4～10  Cores、10mm²；

KVVP(P2)-22、KYJVP(P2)-22：7～61 Cores、0.75～1.0mm²；4～61 Cores、
1.5～2.5mm²；4～14 Cores、4～6mm²；4～10 Cores、10mm²

Rated Voltage：

0.6/1kV、450/750V

Standard：

Standard：GB/T 9330

Products Introduction：

Apply to control, monitoring loop, protective circuit, etc. The long-term operating temp. of PVC insulated cable shall not exceed 70℃, and long-term operating temp. of XLPE insulated cable shall not exceed 90℃. The temp. shall not below 0℃ when laying. If it is below 0℃, pre-warming must be taken. Remarks: All the above types have structure of Flame-retardant/Refractory/Halogen-free Low Smoke Flame-retardant/Halogen-free Low Smoke Flame-retardant Refractory. Type of Flame-retardant: ZA(B, C, D)-KVV22, ZA(B, C, D)-KVV32, ZA(B, C, D)-KYJV22, ZA(B, C, D)-KYJV32, ZA(B, C, D)-KVVP(P2)-22, ZA(B, C, D)-KYJVP(P2)-22. Type of Refractory: NH-KVV22, NH-KVV32, NH-KYJV22, NH-KYJV32, NH-KVVP(P2)-22, NH-KYJVP(P2)-22.

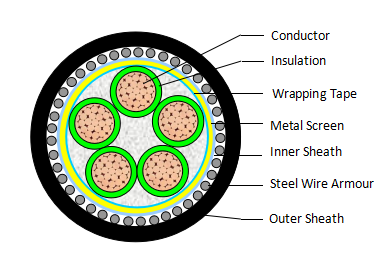

  Cable Structure Drawing：
