Type：

KVVR、KYJVR、KVVRP、KYJVRP、KVV、KYJV、KVVP(P2)(P3)、KYJVP(P2)(P3)

Main Specification：

KVVR、KYJVR：2～61 Cores、0.5～2.5mm²；

KVVRP、KYJVRP：2～61 Cores、0.5～1.0mm²；2～48  Cores、1.5～2.5mm²

KVV、KYJV、KVVP(P2)(P3)、KYJVP(P2)(P3)：2～61 Cores、0.75～2.5mm² ；

2～14 Cores、4～6mm²；2～10 Cores、10mm²

Rated Voltage：

0.6/1kV、450/750V

Standard：

Standard：GB/T 9330

Products Introduction：

Apply to control, monitoring loop, protective circuit, etc. The long-term operating temp. of PVC insulated cable shall not exceed 70℃, and long-term operating temp. of XLPE insulated cable shall not exceed 90℃. The temp. shall not below 0℃ when laying. If it is below 0℃, pre-warming must be taken. Remarks: All the above types have structure of Flame-retardant/Refractory/Halogen-free Low Smoke Flame-retardant/Halogen-free Low Smoke Flame-retardant Refractory. Type of flame-retardant:ZA(B,C,D)-KVVR, ZA(B,C,D)-KYJVR, KVVRP, ZA(B,C,D)-KYJVRP, ZA(B,C,D)-KVV, ZA(B,C,D)-KYJV, ZA(B,C,D)-KVVP(P2)(P3), ZA(B,C,D)-KYJVP(P2)(P3). Type of refractory:NH-KVVR, NH-KYJVR, NH-KVVRP, NH-KYJVRP, NH-KVV, NH-KYJV, NH-KVVP(P2)(P3), NH-KYJVP(P2)(P3).

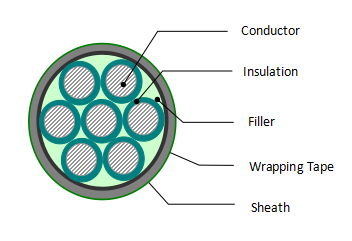

  Cable Structure Drawing：
